    RoHS Ultra Fast Recovery Rectifier Diode Low Reverse Leakage

    Ask Lasest Price
    Brand Name : OTOMO
    Certification : RoHS、SGS
    Price : Negotiated
    Delivery Time : 1 - 2 Weeks
    Payment Terms : L/C T/T Western Union
    Supply Ability : 18,000,000PCS / Per Day
    Model Number : FR101 THRU FR107
    • Product Details
    • Company Profile

    RoHS Ultra Fast Recovery Rectifier Diode Low Reverse Leakage

    FR101 THRU FR107 FAST RECOVERY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Amper


    FEATURE
    The plastic package carries Underwriters Laboratory
    Flammability Classification 94V-0
    Fast switching for high efficiency
    Low reverse leakage
    High forward surge current capability
    High temperature soldering guaranteed:
    250 C/10 seconds,0.375”(9.5mm) lead length,
    5 lbs. (2.3kg) tension
    MECHANICAL DATA
    Case: JEDEC DO-41 molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD-750,
    Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight:0.012 ounce, 0.33 grams

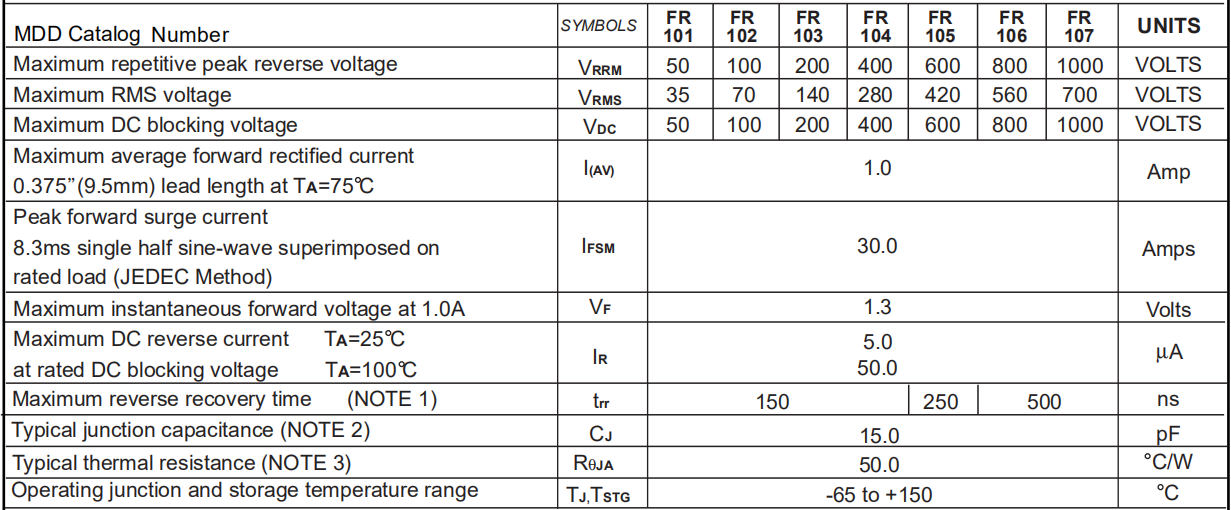

    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

    Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
    Note:
    1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
    2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
    3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte
    RATINGS AND CHARACTERISTIC CURVES 1N4942 THRU 1N4948
