    M1 THRU M7 High Voltage Rectifier Diode Reverse Voltage - 50 to 1000 Volts

    M1 THRU M7 Reverse Voltage - 50 to 1000 Volts Forward Current -1.0 Ampere


    FEATURES


    • molded plastic technique
    • Low reverse leakage
    • High forward surge current capability
    • High temperature soldering guaranteed:250 C/10 seconds,0.375”(9.5mm) lead length,5 lbs. (2.3kg) tension
    • The plastic package carries Underwriters Laboratory
    • Flammability Classification 94V-0
    • Construction utilizes void-free

    MECHANICALDATA
    Case:JEDEC DO-41 molded plastic body
    Terminals:Plated axial leads,solderable per MIL-STD-750,
    Method2026
    Polarity:Color band denotes cathode end
    Mounting Position:Any
    Weight:0.04ounce,1.10grams

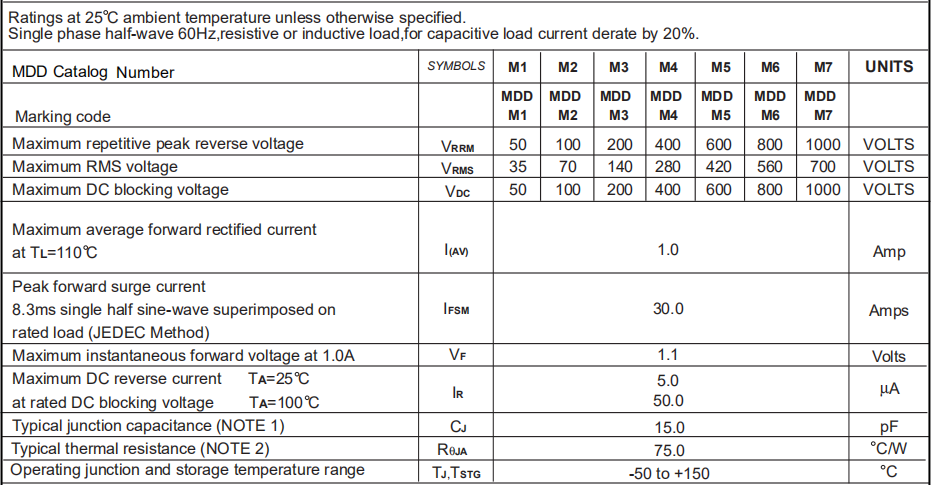

    MAXI MUMRATINGS AND ELECTRICAL CHARACTERISTICS
    Note:
    1. Measured at 1MHz and applied reverse voltage of 4.0VD.C.
    2. Thermal resistance from junction to ambientat 0.375(9.5mm) lead length,P.C.B.mounted
    RATINGS AND CHARACTERISTIC CURVES 1N5400 THRU 1N5408
